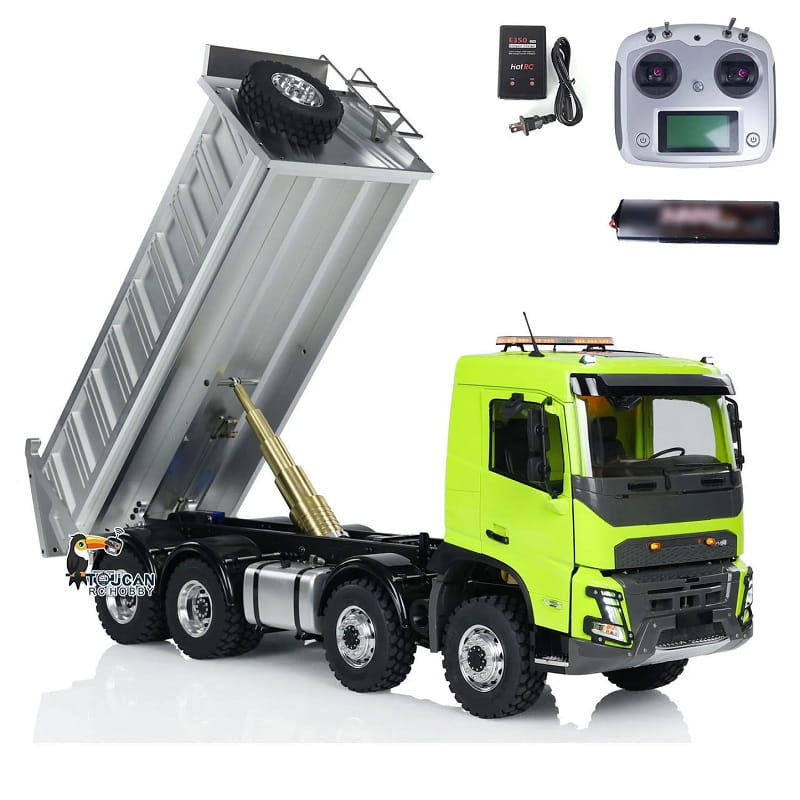

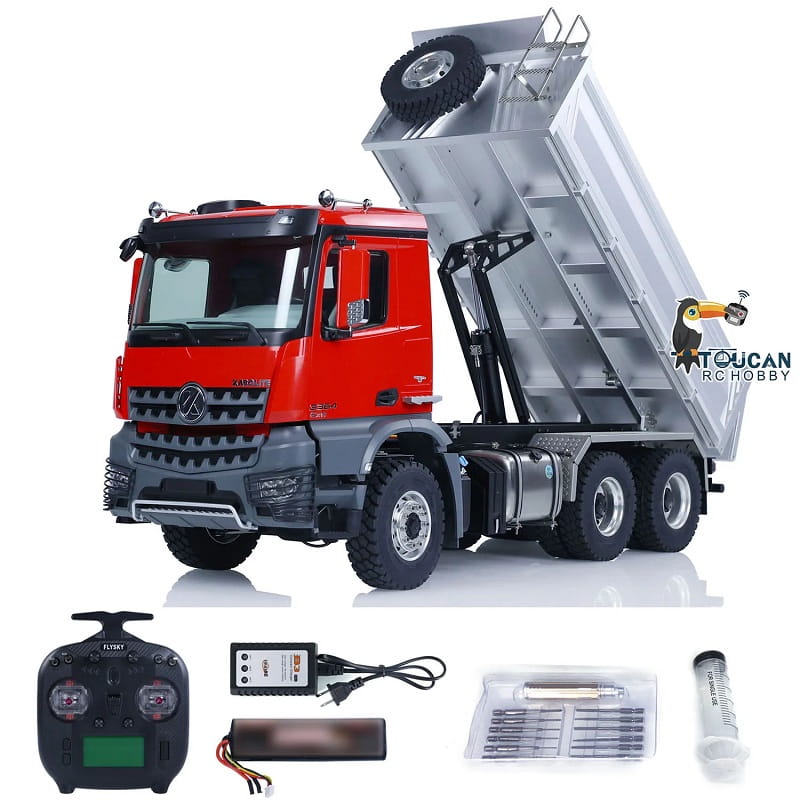

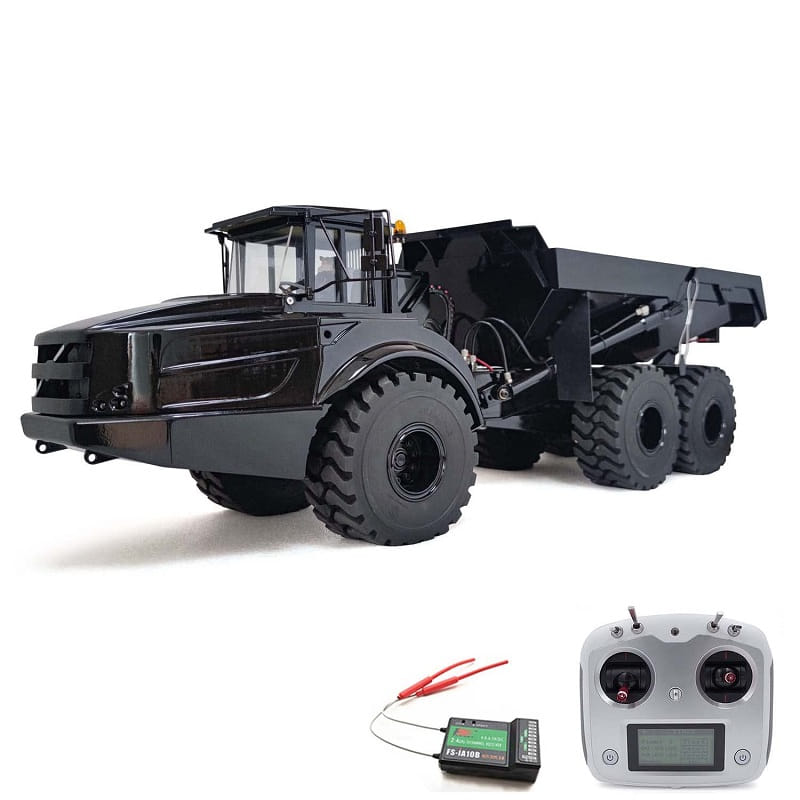

RC Dump Truck Hydraulic System: Components, Function, and Maintenance catdumptruck.com | Remote-controlled (RC) dump trucks are popular in construction modeling, industrial training, and hobbyist communities.
Unlike traditional electric or mechanical models, an RC dump truck hydraulic system mimics the real-world functionality of full-scale dump trucks, providing realistic lifting and dumping capabilities.
These systems rely on hydraulic power to lift and lower the dump bed efficiently, making them ideal for heavy-duty RC applications.
This article explores the components, working principles, benefits, common issues, and maintenance of an RC dump truck hydraulic system.
Read More: 1 Ton Dump Truck Hydraulic Cylinder
Key Components of an RC Dump Truck Hydraulic System
An RC dump truck’s hydraulic system includes several essential parts that work together to achieve smooth and realistic operations:
1. Hydraulic Pump
A miniature hydraulic pump pressurizes hydraulic fluid.
Commonly powered by an electric motor (e.g., brushless or brushed motor).
Ensures smooth fluid circulation within the system.
2. Hydraulic Cylinder
Converts hydraulic pressure into mechanical movement.
Typically a small-scale telescopic or single-acting cylinder.
Provides controlled lifting and lowering of the dump bed.
3. Hydraulic Reservoir (Tank)
Stores hydraulic fluid and helps maintain system pressure.
Includes filtration to prevent contaminants from entering the system.
4. Control Valve
Directs hydraulic fluid flow to extend or retract the hydraulic cylinder.
Operated via a remote control to manage lifting and lowering actions.
5. Hydraulic Fluid
Specialized lightweight hydraulic oil or synthetic fluid designed for small-scale systems.
Ensures smooth operation and prevents wear on internal components.
6. Tubing and Fittings
Small-diameter hoses transport hydraulic fluid between components.
Must withstand pressure and ensure no leakage.
How an RC Dump Truck Hydraulic System Works
The operation of an RC dump truck hydraulic system follows a sequence similar to real dump trucks:
1. Activating the Hydraulic System
The operator sends a signal via the remote control to activate the hydraulic pump.
The pump draws hydraulic fluid from the reservoir and pressurizes it.
2. Lifting the Dump Bed
The control valve directs pressurized fluid into the hydraulic cylinder.
The cylinder extends, raising the dump bed.
The operator can adjust lifting speed based on pump pressure and valve control.
3. Lowering the Dump Bed
The control valve redirects fluid back to the reservoir, allowing the cylinder to retract.
The dump bed smoothly lowers due to controlled fluid flow.
Some models use flow restrictors to prevent sudden drops.
Benefits of Using a Hydraulic System in RC Dump Trucks
A hydraulic system provides several advantages over electric or mechanical lifting mechanisms:
- Realistic Operation – Closely mimics full-scale dump truck hydraulics.
- High Lifting Power – Handles heavier loads compared to servo-driven systems.
- Smooth Movements – Offers controlled and precise lifting/lowering actions.
- Durability – Hydraulics experience less wear compared to mechanical gear systems.
RC Dump Truck Hydraulic System: Components, Function, and Maintenance
Common Issues and Troubleshooting
Despite their efficiency, RC dump truck hydraulic systems may encounter some issues. Here’s how to address them:
1. Weak or Slow Lifting Action
Causes: Low hydraulic fluid, air in the system, or weak pump pressure.
Solutions: Refill fluid, bleed air from the system, and check the pump’s power output.
2. Hydraulic Leaks
Causes: Loose fittings, worn-out seals, or damaged hoses.
Solutions: Tighten connections, replace seals, and inspect tubing for damage.
3. Inconsistent Movement
Causes: Clogged control valve, contaminated hydraulic fluid.
Solutions: Clean the valve and flush the system with fresh hydraulic oil.
4. Overheating Hydraulic Pump
Causes: Overuse, inadequate cooling, or excessive load.
Solutions: Allow cooldown periods and avoid overloading the truck.
Best Maintenance Practices for RC Dump Truck Hydraulics
To ensure smooth operation and longevity, follow these maintenance tips:
- 1. Regular Fluid Checks
Monitor hydraulic fluid levels and refill when necessary.
Use manufacturer-recommended oil to prevent system damage.
- 2. Inspect Hoses and Connections
Check for leaks, cracks, or loose fittings.
Replace worn-out components before they fail.
- 3. Clean or Replace Filters
Keep the hydraulic system clean by replacing filters as needed.
Prevents debris from clogging valves and damaging cylinders.
- 4. Lubricate Moving Parts
Apply lubrication to mechanical joints and connections.
Reduces friction and extends component life.
Conclusion
An RC dump truck hydraulic system provides a realistic and powerful lifting mechanism for scale-model dump trucks. By understanding its components, operation, and maintenance, users can ensure smooth performance and longevity.
Regular upkeep, such as monitoring fluid levels, checking for leaks, and cleaning filters, will help prevent system failures.
Whether for industrial training or hobbyist enjoyment, a well-maintained RC hydraulic system delivers reliability, precision, and enhanced functionality.
